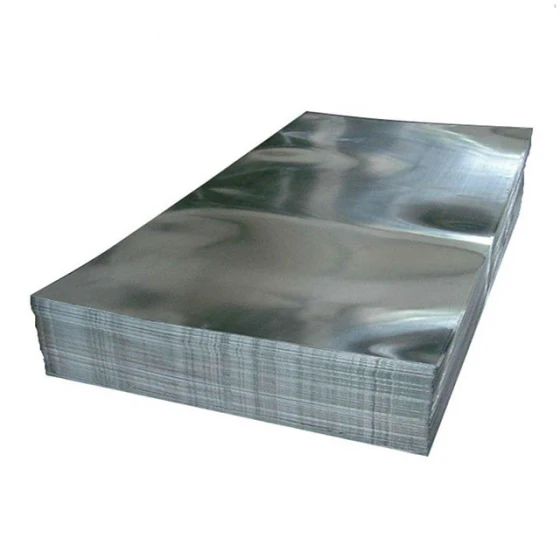

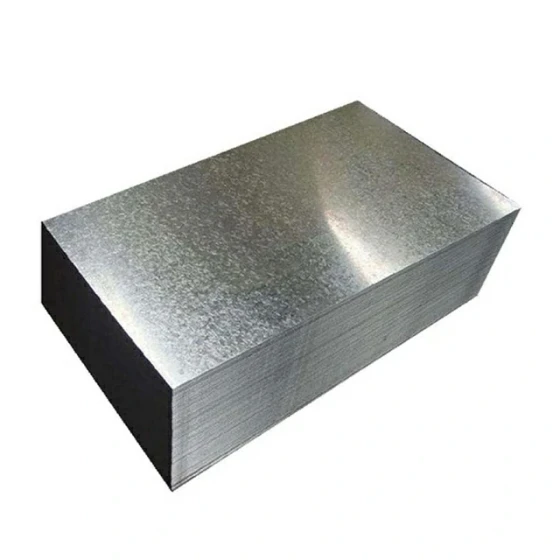

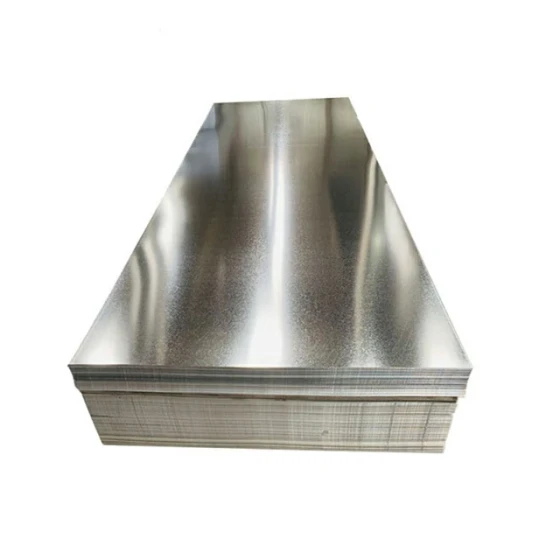

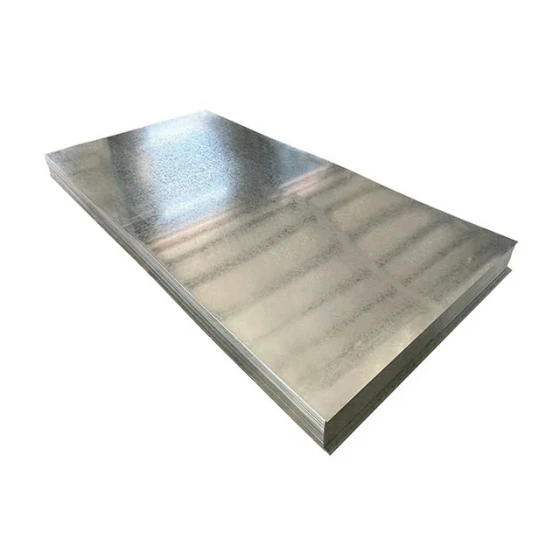

Galvanized sheet
Width: 12.7mm - 2000mm
Coil inner : 508mm / 610mm
Classification :
PRODUCT DETAILS
Galvanized sheet is a type of steel plate with a surface coated with a layer of zinc. Galvanization is a commonly used economical and effective rust prevention method, and about 50% of the world's zinc production is used in this process. The application of galvanized sheet is very extensive, such as preventing corrosion on the surface of the steel plate and extending its service life; Apply a layer of metallic zinc on the surface of the steel plate to produce galvanized steel plates, etc.
Product name | Galvanized steel coil / Sheet |
Thickness | 0.1mm - 5.0mm |
Width | 12.7mm - 2000mm |
Coil inner | 508mm / 610mm |
Surface | Large zinc flower, small zinc flower, no zinc flower |
Surface Treatment | Chromated, non-chromated, oiled, non-oiled, skin pass |
Zinc layer | 30g - 275g |
Standard | GB, GOST, ASTM, AISI, JIS, BS, DIN, EN |
Technology | Electrogalvanizing, hot-dip galvanizing,tinning |
Material | CGCC, CGCH, G550, DX51D, DX52D, DX53D, etc. All according to the customer's request. |
Application | Villas, townhouse, apartments, tourist destination building, and roof conversion project |
Package | Waterproof paper & plastic film & iron packing & bunding, or as customer's requirement |
Chemical Composition
Standard | Grade | C | Si | Mn | P | S | Ti |
Forcold Forming Chinese Standard | DX51D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 |
DX52D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX53D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX54D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX56D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX57D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
Forcold Forming Japanese Standard | SGCC | 0.15 | 0.50 | 0.80 | 0.050 | 0.030 | 0.025 |
SGCD1 | 0.12 | 0.50 | 0.60 | 0.040 | 0.030 | 0.025 | |
SGCD3 | 0.08 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
SGCD4 | 0.06 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
For Structure Japanese Standard | SGC340 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.025 |
SGC400 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.150 | |
SGC490 | 0.30 | 0.50 | 2.00 | 0.200 | 0.035 | 0.025 | |
SGC510 | 0.30 | 0.50 | 2.50 | 0.200 | 0.035 | 0.025 | |
For Structure AISI Standard | S220GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 |
S250GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S280GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S320GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S350GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 | |
S550GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 |
Mechanical Properties
Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
S220GD Z/ZM/AM | 220 | 300 | 20 |
S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
S280GD Z/ZM/AM | 280 | 360 | 18 |
S300GD A/AM | 300 | 380 | 18 |
S320GD Z/ZM/AM | 320 | 390 | 17 |
S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
S450GD A/AM | 450 | 480 | 15 |
S550GD Z/ZM/AZ/AM | 550 | 550 | - |
Galvanized Surface Selection

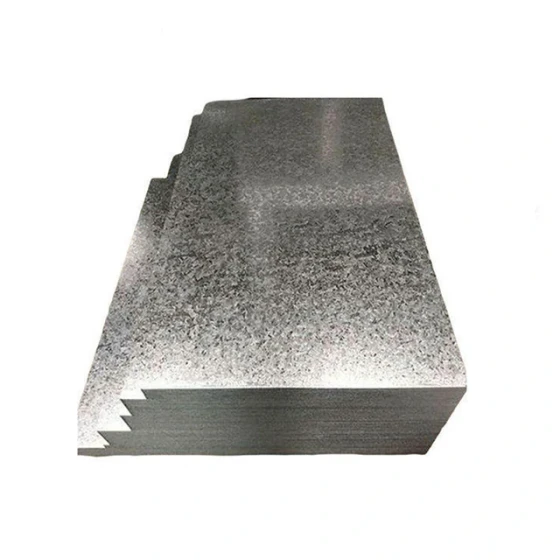

Zero Spangle | Minimized Spangle | Normal Spangle | Large Spangle |
 |  |  |
|

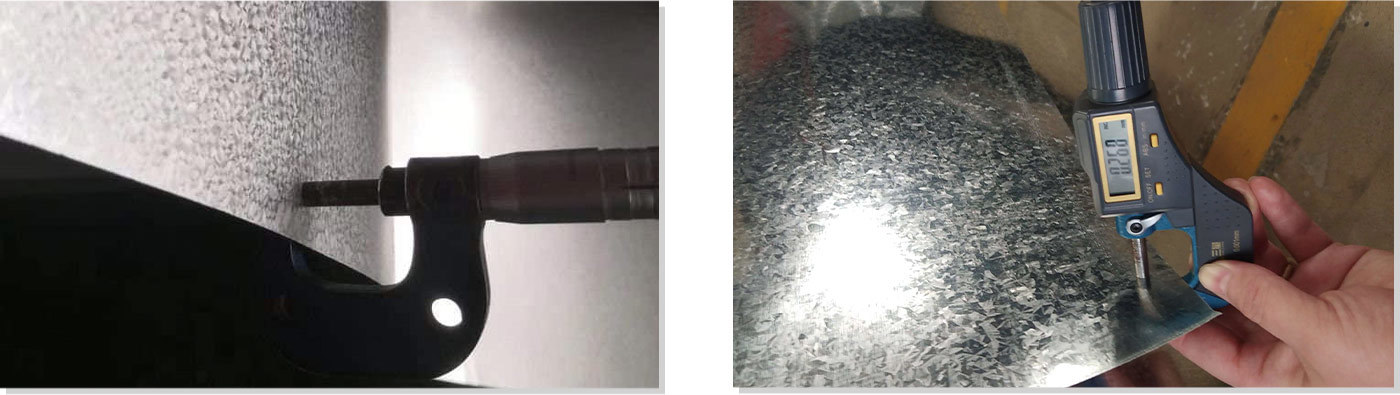

We can develop the most suitable material testing plan based on customer needs and standard requirements, including chemical composition analysis, physical property testing, mechanical property testing, etc.
According to production and processing methods, galvanized sheet can be divided into the following categories:
Hot dip galvanized steel plate. Immerse the thin steel plate into a molten zinc bath, so that a layer of zinc adheres to its surface. At present, the main production method is continuous galvanizing, which involves continuously immersing rolled steel plates in a molten zinc plating bath to produce galvanized steel plates.
